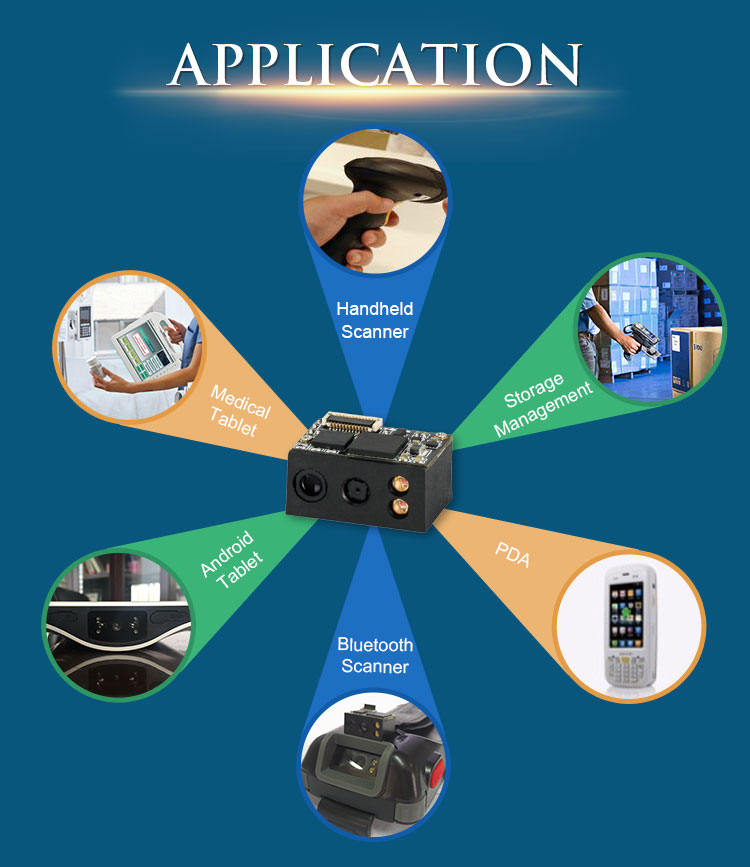

The LV3296 supports all mainstream 1D as well as 2D barcodes including PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code.This compact engine weighs only 5 grams and fits easily into even the most space- constrained equipments such as data collectors, meter readers, ticket validators and PDAs.
Product Features:
1. Multi-Interface
The LV3296 supports USB and TTL-232 interfaces to meet diverse customer needs.
2. High-endTechnology
Built with Rakinda’s fifth-generation of technology, the scan engine can decode even poor quality barcodes with ease.

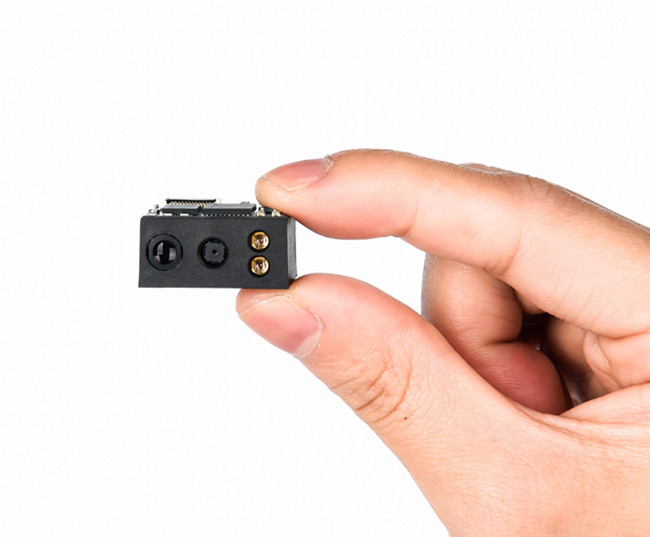

3. Miniature and Ultralight Form Factor
Ultra-compact, light and integrator-friendly, the LV3296 caters for miniaturization needs of OEM applications.
4.Outstanding Power Efficiency
The advanced technology incorporated in the scan engine helps reduce the power consumption and prolong the service life of the device.
Product Specifications:
| Interface | TTL-232, USB (optional) |
| Image Sensor | 752×480 CMOS |
| Symbologies | 2D: PDF 417, DataMatrix(ECC200,ECC000,050,080,100,140), QR Code 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. |
| Illumination | Red LED 625±10 nm |
| Resolution | ≥ 5mil |
| Ambient Light | 0 ~ 100,000 LUX |
| Power Consumption | 0.76 W |
| Operating Voltage | 3.3±10% VDC |
| Current @ 3.3 VDC | Operating Current 230 mA Standby Current 4mA (USB communication not supported); 7mA (USB communication supported) Sleep Current <5 uA |
| Dimensions | 21.17(W)×14.6(D)×11.52(H)mm |
| Weight | 5.0g |
| Operating Temperature | -20℃~ +60℃ |
